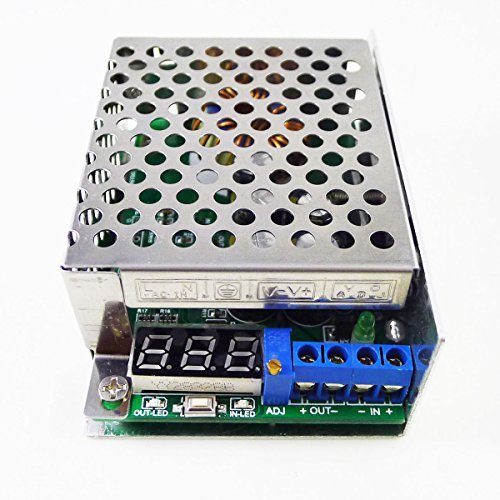

GEREE DC-DC Boost Converter 10-32V to 12-46V 12V to 24v MAX 8A 150W Step Up Charger Power Module

Description
150 w booster module, 10-32 v wide input voltage, 12-46 v adjustable wide output voltage, low input/output differential pressure.
Digital tube can display the input and output voltage, button switch,
Installation dimensions: length x width x height = 8.5 cm x 5.8 cm x 3.3 cm
Product specifications:
Module name: 150 w booster module
Module properties: non-isolate module (BOOST)
The input voltage: 10-32 v input (with wide input voltage range application)
Input current: 16 A(MAX) if more than 8A please add heat sink
Static working current: 15 ma (if 12 v to 20 v, the high output voltage the Static current will increase)
Output voltage: 12-46 v continuous adjustable
Output current: 8A MAX if more than 4A, please enhance the cooling ( the output voltage more than input , the output current will get smaller)
output power: natural cooling 90w , the strengthening heat 150 w
Working temperature: – 40 ~ + 85 degrees
Working frequency: 150 KHZ
Conversion efficiency: up to 95% (efficiency and the input, output voltage, current and pressure difference)
Short circuit protection: there are 15A fuse (input)
Input reverse connect protection: yes
Package Included:
1 x 150W DC-DC Boost Converter step Up Power supply module
